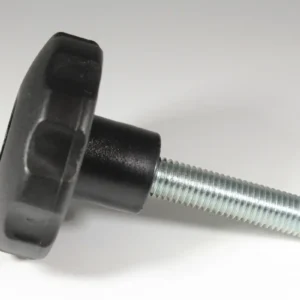

Male Hand Wheels – Knobs – Handwheels

Thread Size

Thread Length

Colour

Clear

Total price (Excl. VAT) : £2.52

Bulk deal

Quantity	Price per Unit
1 - 99	£2.52
100 - 249	£2.48
250 +	£2.36

Bulk pricing will be applied to package:

Product with SKUs from the list: 'M12x58 male hand wheels'

No Minimum Order
No Account Needed
FREE UK Delivery Orders Over £25
Safe Payments

Product Information

No minimum order, buy as many as you need from one to the quantity you need.
Standard colour: black
Masking plug colours: black, grey, green, red and blue

Handwheels made of Polyamide. Used in the furniture and interior design, machinery, electrical engineering and construction industries.

The material from which the plugs are made is Polyethylene – a material with universal application possibilities. Polyamide is characterized by low abrasion while maintaining resistance to environmental stress corrosion, high dimensional stability even at low temperatures, very good chemical resistance and low water absorption. It is resistant to changing weather conditions and UV radiation. It is also characterized by good electrical insulating properties.

Benefits of using Knobs

Attractive design of the knob,
Resistant to oils, greases and fuels,
Impact resistant,
Resistant to external conditions,
A plug for self-assembly,
Sunken hexagonal nut in the plastic.

knobs - Trebork — Male Hand Wheels – Knobs – Handwheels 2

		mm	mm	mm	mm
TYPE	HAND KNOBS	THREAD	H	h	D
Ø30 M5 x 14	Ø30	M5	14	10	10
Ø30 M5 x 18	Ø30	M5	18	10	10
Ø30 M5 x 28	Ø30	M5	28	10	10
Ø30 M6 x 23	Ø30	M6	23	10	10
Ø30 M6 x 38	Ø30	M6	38	10	10
Ø30 M8 x 23	Ø30	M8	23	10	10
Ø30 M8 x 38	Ø30	M8	38	10	10
Ø50 M8 x 13	Ø50	M8	13	17	15
Ø50 M8 x 18	Ø50	M8	18	17	15
Ø50 M8 x 23	Ø50	M8	23	17	15
Ø50 M8 x 38	Ø50	M8	38	17	15
Ø50 M8 x 48	Ø50	M8	48	17	15
Ø50 M8 x 58	Ø50	M8	58	17	15
Ø50 M10 x 23	Ø50	M10	23	17	15
Ø50 M10 x 38	Ø50	M10	38	17	15
Ø50 M10 x 48	Ø50	M10	48	17	15
Ø50 M10 x 58	Ø50	M10	58	17	15
Ø64 M8 x 23	Ø64	M8	23	21	19
Ø64 M8 x 33	Ø64	M8	33	21	19
Ø64 M8 x 38	Ø64	M8	38	21	19
Ø64 M8 x 48	Ø64	M8	48	21	19
Ø64 M8 x 58	Ø64	M8	58	21	19
Ø64 M10 x 23	Ø64	M10	23	21	19
Ø64 M10 x 33	Ø64	M10	33	21	19
Ø64 M10 x 38	Ø64	M10	38	21	19
Ø64 M10 x 48	Ø64	M10	48	21	19
Ø64 M10 x 58	Ø64	M10	58	21	19
Ø64 M12 x 23	Ø64	M12	23	21	19
Ø64 M12 x 33	Ø64	M12	33	21	19
Ø64 M12 x 38	Ø64	M12	38	21	19
Ø64 M12 x 48	Ø64	M12	48	21	19
Ø64 M12 x 58	Ø64	M12	58	21	19
